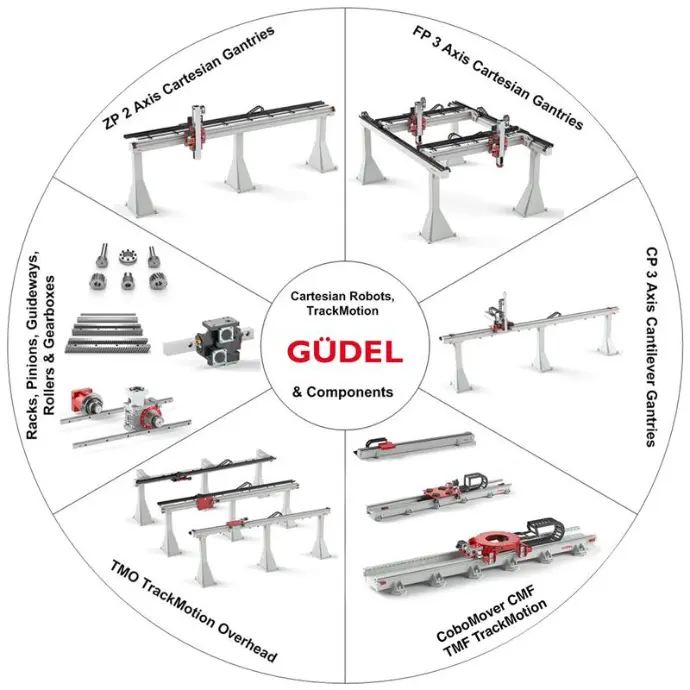

Güdel is a world leader in the supply of Modules & Components for industrial automation
- FP 3-Axis Cartesian Gantries including the new FP-5-HP
- ZP 2-Axis Cartesian Gantries
- TrackMotion Floor, TrackMotion Overhead & CoboMover CMF
- Components – Gearboxes, Guideways, Racks & Pinions
Today Güdel products can be found in industries such as: automotive, rail, logistics & warehousing, wood, aerospace, automotive & pharmaceuticals.
CNC Design can work with customers to provide components & modules as discrete products or modules as complete turnkey systems in conjunction with Siemens industrial automation products such as SINUMERIK CNC’s & SIMATIC PLC’s: 5 axis machining, product handling, 3D printing & additive manufacturing.
Güdel offers a wide range of products and solutions for a variety of industries that include:
- Discrete components, racks & pinions, guideways, rollers & guides and gearboxes.
- Floor mounted and overhead linear tracks.
- 2 & 3 axis Cartesian gantries
- Solutions for specific industries.
- Spare parts.
Linear tracks for robots
TrackMotion Floor TMF
Floor mounted linear tracks for robots
The TrackMotion Floor (TMF) is scalable floor mounted linear track that can manage static payloads up to 20,000kg and articulated/robot payloads up to 14,000kg. All major robot manufacturers are supported including Carriage plate mounting and gearbox motor interface. A wide variety of configuration options allows the TMF to be customised to any application. The TMF will bring precision and efficiency to a wide variety of production process.
CoboMover CMF

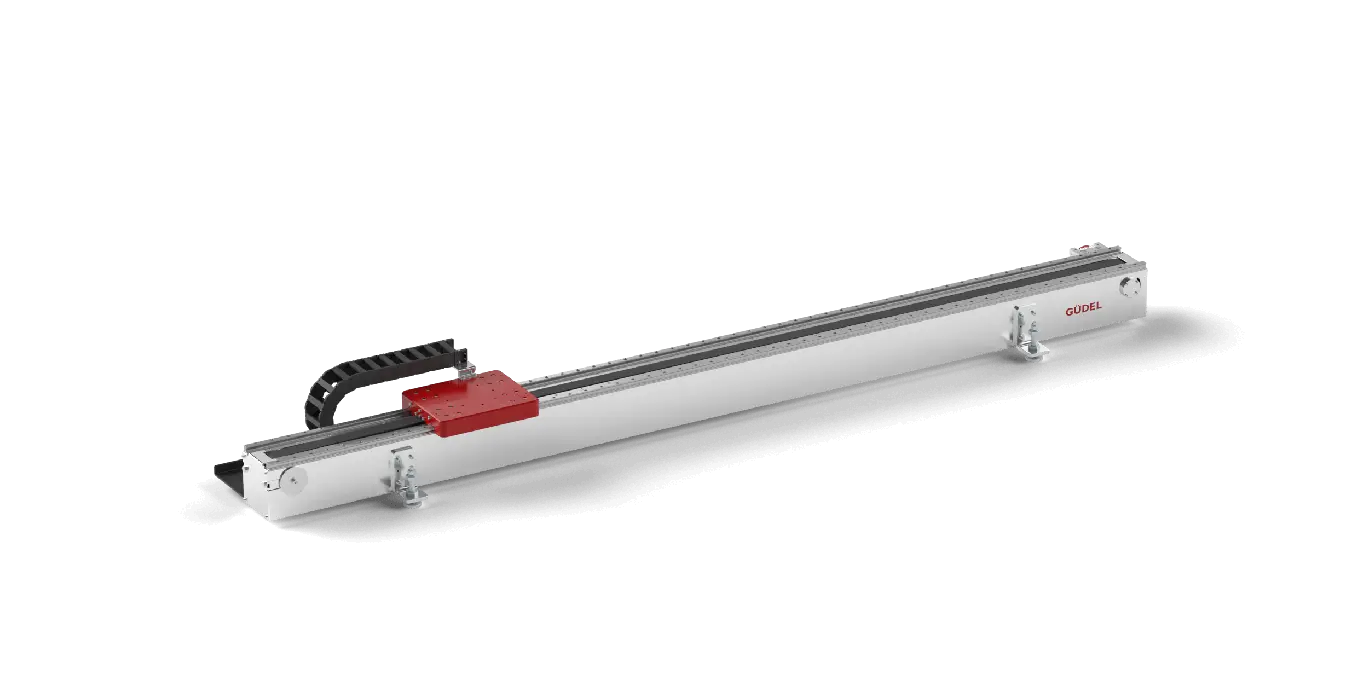

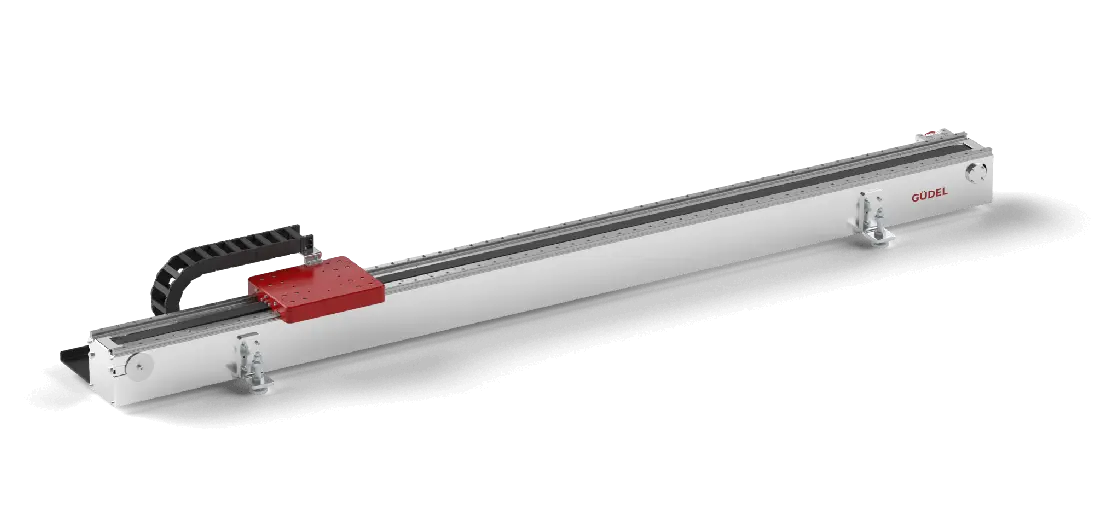

The Güdel CoboMover CMF is a linear axis optimised for cobots and small industrial robots. With the use of a seventh axis, this can extend the working range by up to 5m or increase the cobot/robot’s capacity by allowing it to take on additional tasks or operate across several workstations.
TrackMotion Overhead TMO
Overhead linear tracks for robots
The TrackMotion Overhead (TMO) is scalable above floor mounted linear track that can manage static payloads up to 5,000kg and articulated/robot payloads up to 2,400kg. All major robot manufacturers are supported including Carriage plate mounting and gearbox motor interface. Variations for elevated mounting (E), ceiling mounted (C) and wall mounting (W) are available as standard. A wide variety of configuration options allows the TMO to be customised to any application. The TMO will bring precision and efficiency to a wide variety of production process.
Linear Axis & Gantries
ZP 2-Axis Gantry
Scalable 2-axis gantry
The ZP is a scalable gantry and is used to cover large work areas where a high degree of precision is also required. It is well suited for handling heavy payloads, up to 3,000kg. It is well suited for process-oriented applications such as parts loading & unloading, handling, assembly, and testing.
FP 3-Axis Gantry
Scalable 3-axis gantry for large work areas
The FP is a scalable gantry and is used to cover large work areas where a high degree of precision is also required. It is well suited for handling heavy payloads, up to 3,000kg. Typical industry applications can include logistics and machine tools for warehousing, additive manufacturing, aerospace and automotive. It is also well suited for process-oriented applications such as handling, packaging, palletising, assembly, and testing.
FP-5-HP 3-Axis Gantry
High-performance 3-axis gantry with increased work area & high dynamics
With the new FP-5-HP a maximum stroke of 14m for the Y Axis is now possible. The high dynamic design helps to improve overall cycle time for demanding applications. The FP-5-HP area gantry is especially suited to applications where large work areas must be covered with the highest possible dynamics. Payloads of up to 1,100kg can be mounted on the Y Carriage, while in case of a gantry with Z Axis an effective high dynamic payload of up to 500kg is achievable.
COMPONENTS
Gearboxes

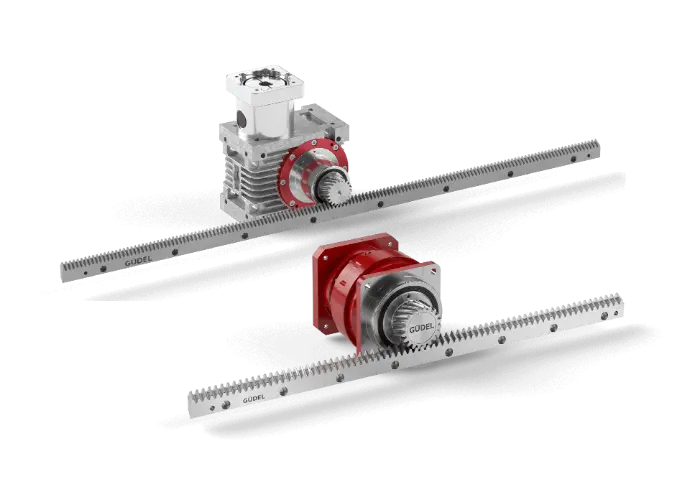

Güdel engineers high-precision gearboxes designed to deliver robust, compact, and high-performance. The product range spans high-performance angle gearboxes and high-precision planetary gearboxes, each tailored to different application demands. The high-performance angle gearboxes provide maximum load capacity and longevity, ideal for demanding machine tool or automation systems. The planetary gearboxes combine precision with proven Güdel quality. Each gearbox integrates seamlessly into automated systems and can be configured for unique user requirements.
Linear guideways

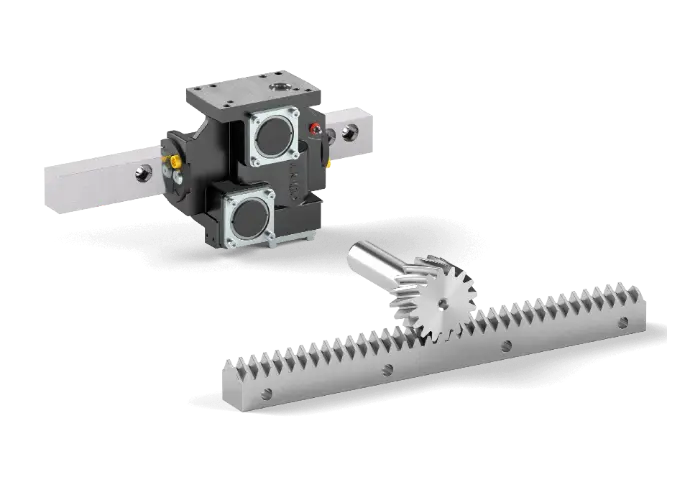

Güdel designs and manufactures high-precision linear guideway systems designed to move loads from a few kilograms to several tons with outstanding accuracy and stability. Built with guided rollers, these modular systems ensure high speed, acceleration, and rigidity while maintaining a compact footprint. Güdel’s engineering expertise enables reliable performance even in demanding environments. For heavy-duty applications, the systems provide exceptional load capacity and quiet operation, while for medium-duty automation, Güdel offers refined vee-bar and roller guideways delivering low friction, smooth motion, and precise positioning across various industrial processes.
Racks & Pinions

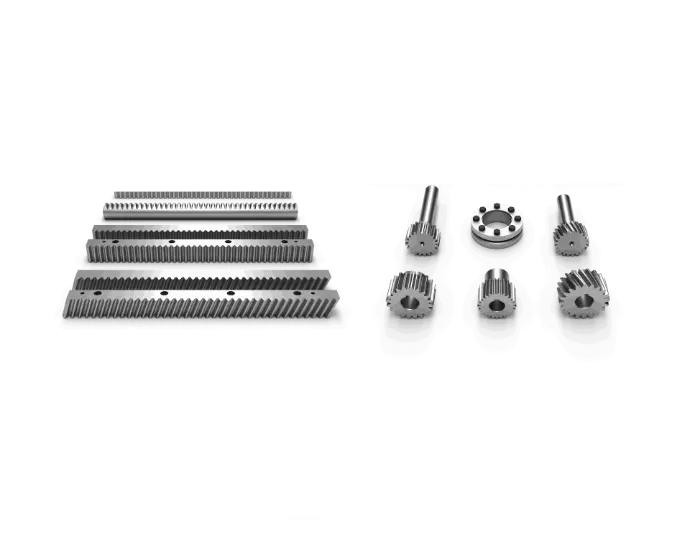

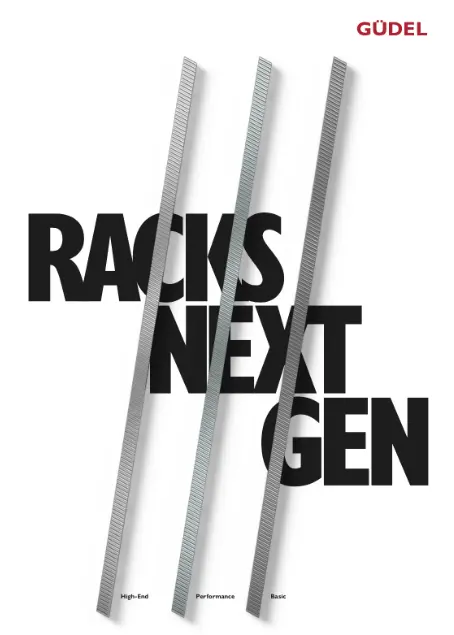

Güdel supplies precision rack-and-pinion systems engineered to deliver robust, compact, and high-performance linear drives. Their product range spans High-End, Performance, and Basic grades, each tailored to different application demands. The High-End versions emphasize maximum load capacity and longevity by using hardened, ground tooth profiles, ideal for demanding machine tool or automation systems. The Performance class offers an optimal middle ground with smooth precision and proven Güdel quality. For tasks with lower precision needs, the Basic line provides durable, milled or hardened racks for reliable power transmission in pick-and-place, logistics, or gantry axes. Each rack is fully compatible with matching pinions and can be integrated easily into automated systems, while also being configurable for unique user requirements.

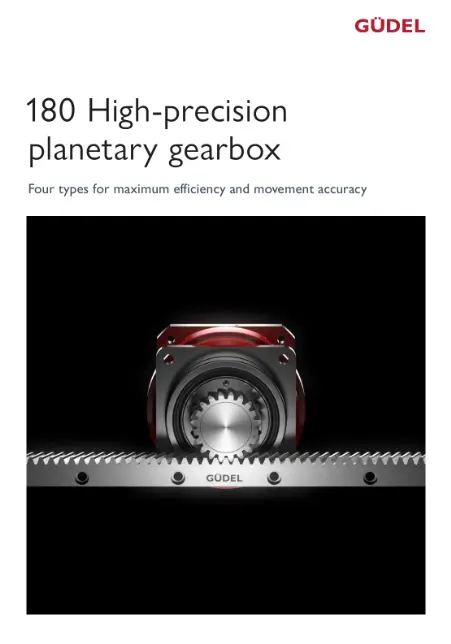

Güdel 180 High-precision planetary gearbox, brochure
