CNC retrofit for Titan TMG turning and milling machine
CNC Design complete design and installation of a CNC retrofit for the Titan TMG vertical turning and milling center.
The challenge
Identifying and implementing a cost-effective solution for upgrading the CNC control system to the latest technology with a minimum disturbance of the production was the main challenge for this project. The careful design for integrating the original servomotors, spindle motors and the original interface with the machine sensors and actuators with the new CNC and drive system and re-engineering the software system for the complex, multi-channel machine was the key of success for this project.
CNC Design complete design and installation of a CNC retrofit for the Titan TMG vertical turning and milling centre.
The challenge
Identifying and implementing a cost-effective solution for upgrading the CNC control system to the latest technology with a minimum disturbance of the production was the main challenge for this project. The careful design for integrating the original servomotors, spindle motors and the original interface with the machine sensors and actuators with the new CNC and drive system and re-engineering the software system for the complex, multi-channel machine was the key of success for this project.
Before the retrofit
After the retrofit
Before the retrofit
After the retrofit
The end user
Berg Engineering is a family-owned business. Founded in 1972, Berg has grown from a small operation to a multi-million-dollar group of companies, with a reputation for excellence on the back of two generations of family passion.
With manufacturing facilities in Australia (Brisbane and Gladstone), New Caledonia, Indonesia and Papua New Guinea, Berg can undertake complete fabrication and installation of complex assemblies and functional structures. The Titan TMG machine is just one of the modern CNC machines which offers Berg Engineering the capacity for manufacturing large parts.

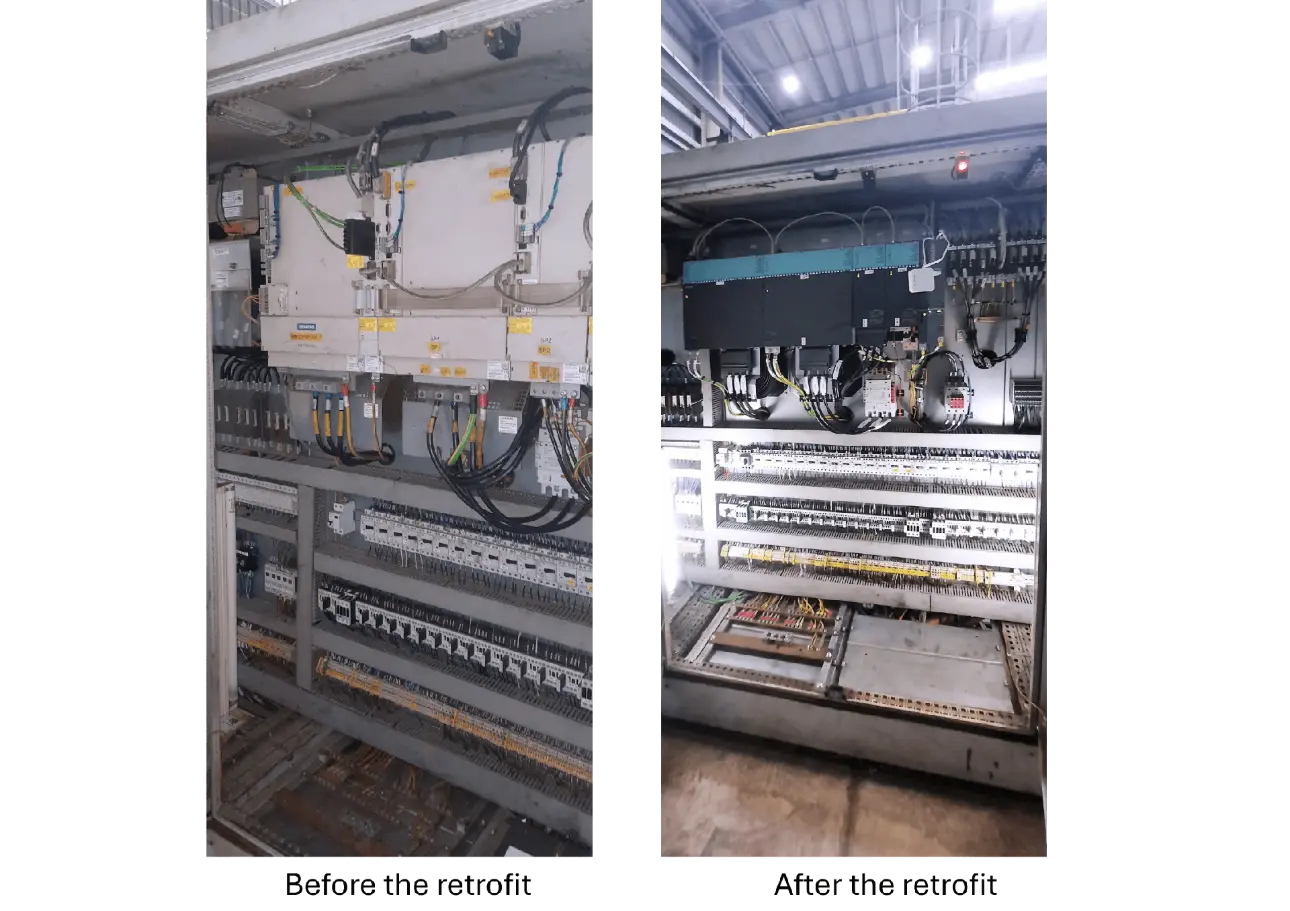

Electrical Cabinet #1
Before the retrofit
After the retrofit
The Equipment
The flexibility of SINUMERIK ONE to work with existing automation products from the previous generations of CNC platforms from Siemens was essential in allowing us to provide a cost-effective upgrade solution. This seamless integration was done in a short time, reducing the production disturbance to a minimum.
In this way, we could offer to the customer power of the new functions available in the latest flagship CNC platform from Siemens and extend the serviceability for the machine for another decade.
The CNC system included:
- SINUMERIK ONE CNC system including SINUMERIK Safety Integrated
- SINAMICS S120 drive system based on active front end infeed module with motor modules for all axes and spindles
- New Renishaw workpiece measuring probe
- The redesign of the electrical cabinet and operating panel

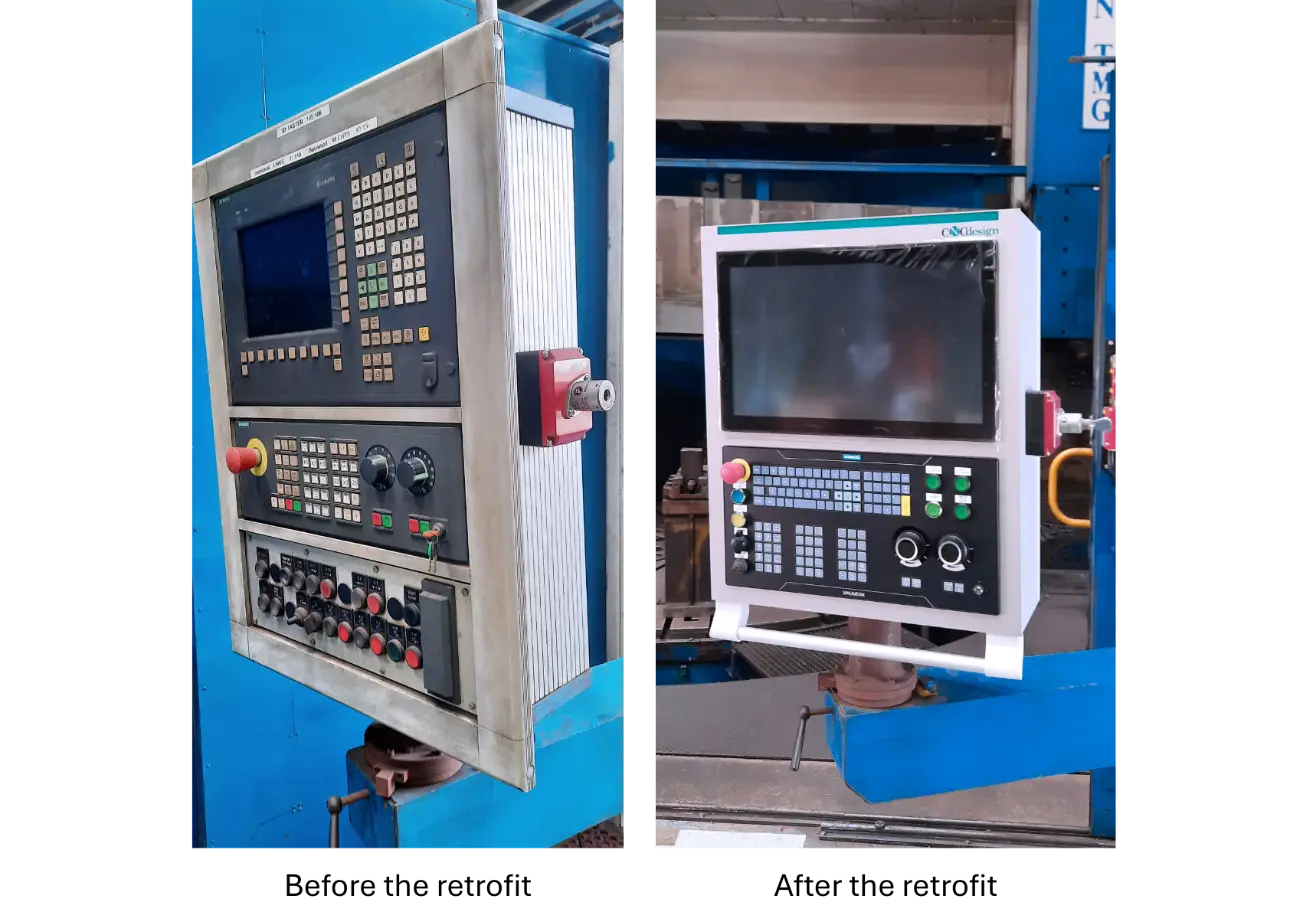

Operator Panel
The Equipment
The flexibility of SINUMERIK ONE to work with existing automation products from the previous generations of CNC platforms from Siemens was essential in allowing us to provide a cost-effective upgrade solution. This seamless integration was done in a short time, reducing the production disturbance to a minimum.
In this way, we could offer to the customer power of the new functions available in the latest flagship CNC platform from Siemens and extend the serviceability for the machine for another decade.
The CNC system included:
- SINUMERIK ONE CNC system including SINUMERIK Safety Integrated
- SINAMICS S120 drive system based on active front end infeed module with motor modules for all axes and spindles
- New Renishaw workpiece measuring probe
- The redesign of the electrical cabinet and operating panel
Operator Panel
Before the retrofit
After the retrofit
Why CNC Design?
NC Design is an Australian company established in 1984 with core competencies in Machine Tools, Production Machinery and associated Motion Control products. With more than 150 people located in our offices in Australia, New Zealand and SE Asia, we have been the exclusive Siemens distributor and Solution Partner in this region for Machine Tool products and services for more than 35 years. CNC Design has experience working with our customers to develop customised solutions tailored to their applications with more than 2,000 projects completed in over thirty countries.

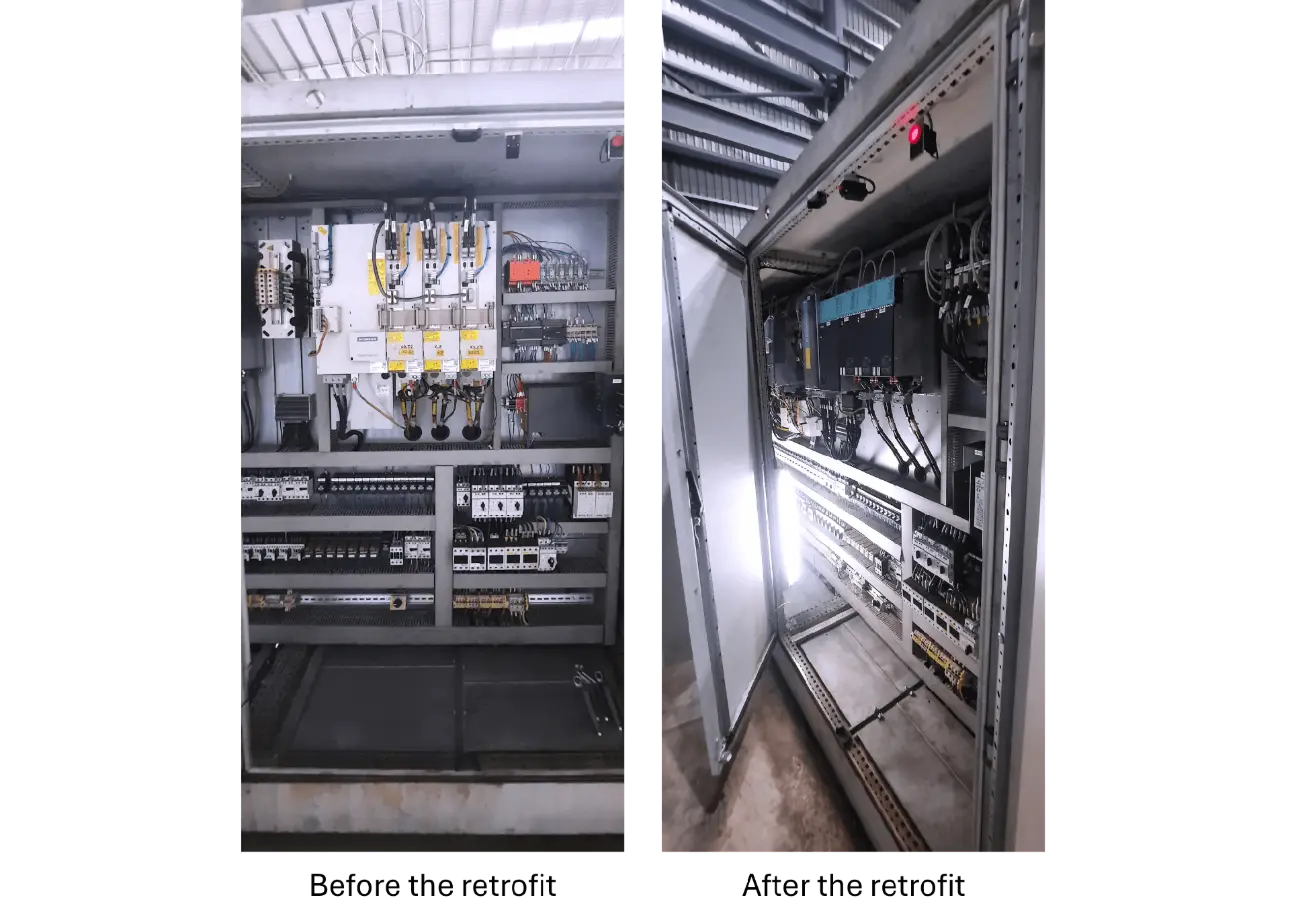

Electrical Cabinet #2
Why CNC Design?
NC Design is an Australian company established in 1984 with core competencies in Machine Tools, Production Machinery and associated Motion Control products. With more than 150 people located in our offices in Australia, New Zealand and SE Asia, we have been the exclusive Siemens distributor and Solution Partner in this region for Machine Tool products and services for more than 35 years. CNC Design has experience working with our customers to develop customised solutions tailored to their applications with more than 2,000 projects completed in over thirty countries.
Electrical Cabinet #2
Before the retrofit
After the retrofit
